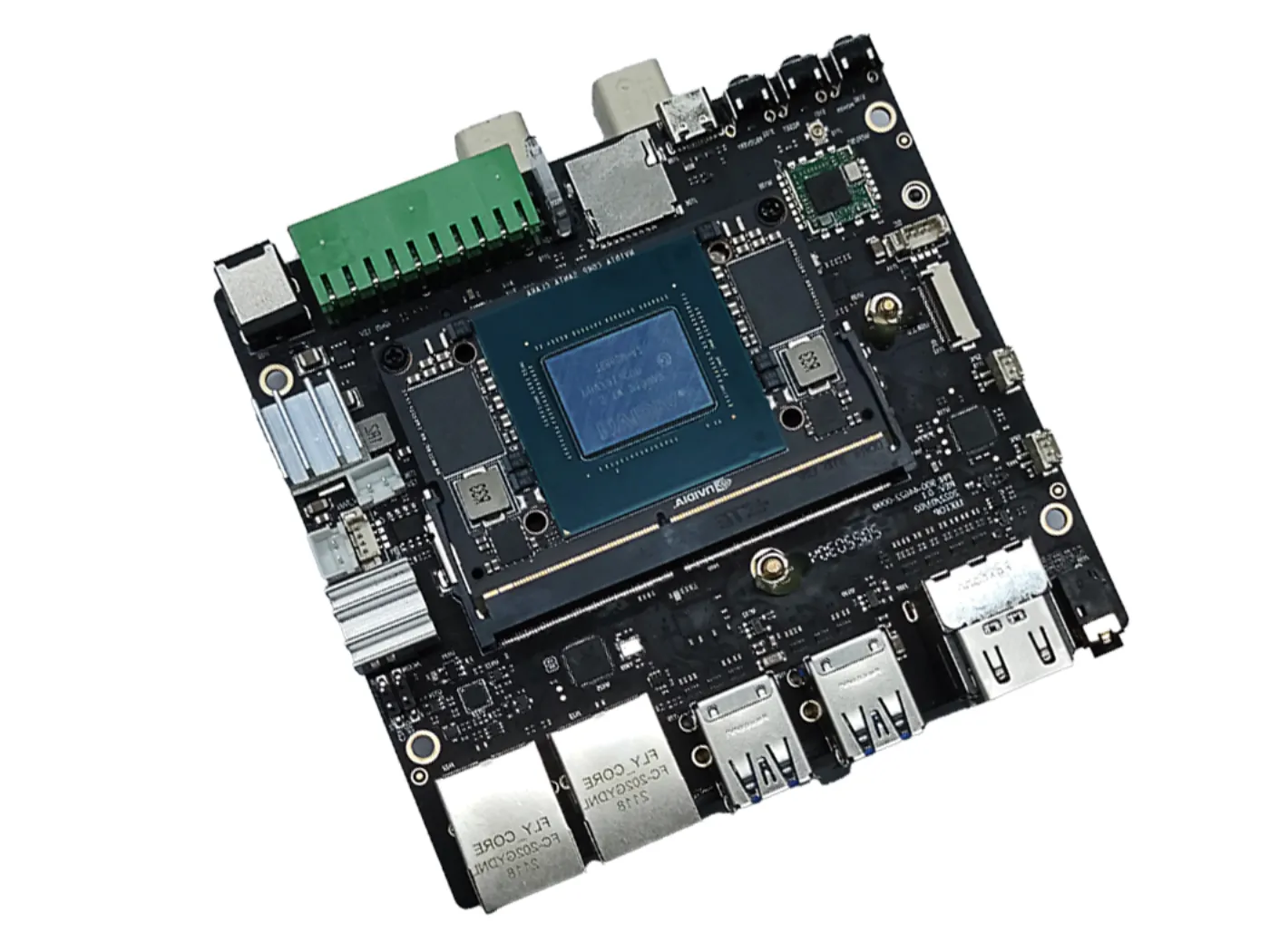

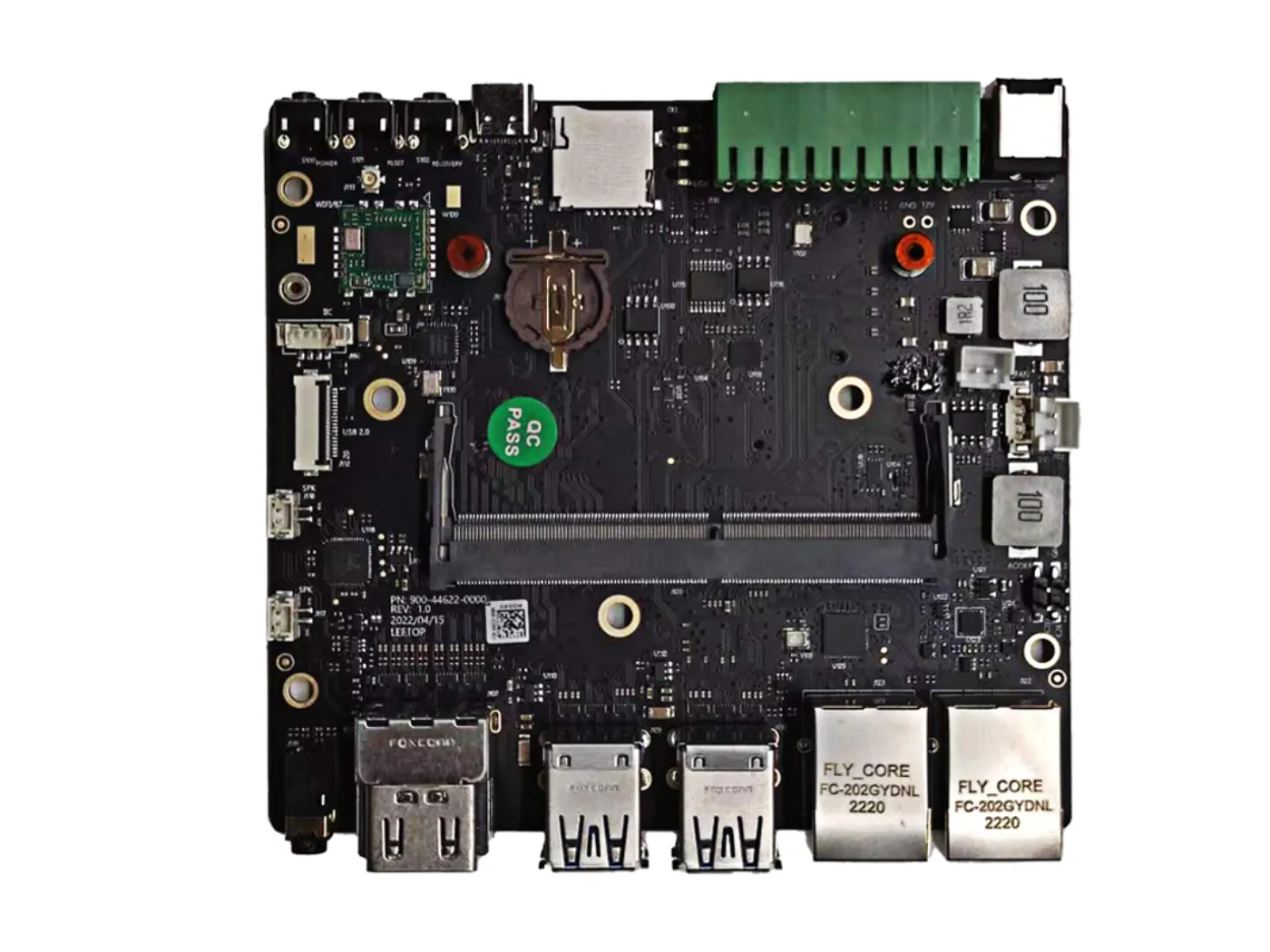

Designing for industrial communication use, A205-E provides RS232 RS485, and CAN interfaces, high-speed PCIe M.2 Key M(SSD), and M.2 Key E(WiFi). It also provides a rich set of I/Os including a micoSD card slot, HDMI, dual Gigabit Ethernet, 4x USB 3, USB2.0 Type C, SPI, I2C, GPIO, and Fan for different application needs. The board supports operate in the temperature range from -25°C to 80°C.

For the full system, please check A205-E industrial mini PC with pre-installed Jetpack 5.0.2 and onboard SSD, and WiFi module.

Features

Cost-effective industrial purpose carrier board: Industrial interfaces and rich I/Os will save cost for both prototyping and deployment.

Work with advanced embedded system: fully support NVIDIA Jetson Nano/NX module with up to 21TOPs AI performances.

Industrial connectivity: 1x CAN, 1x RS232, and 1x RS485

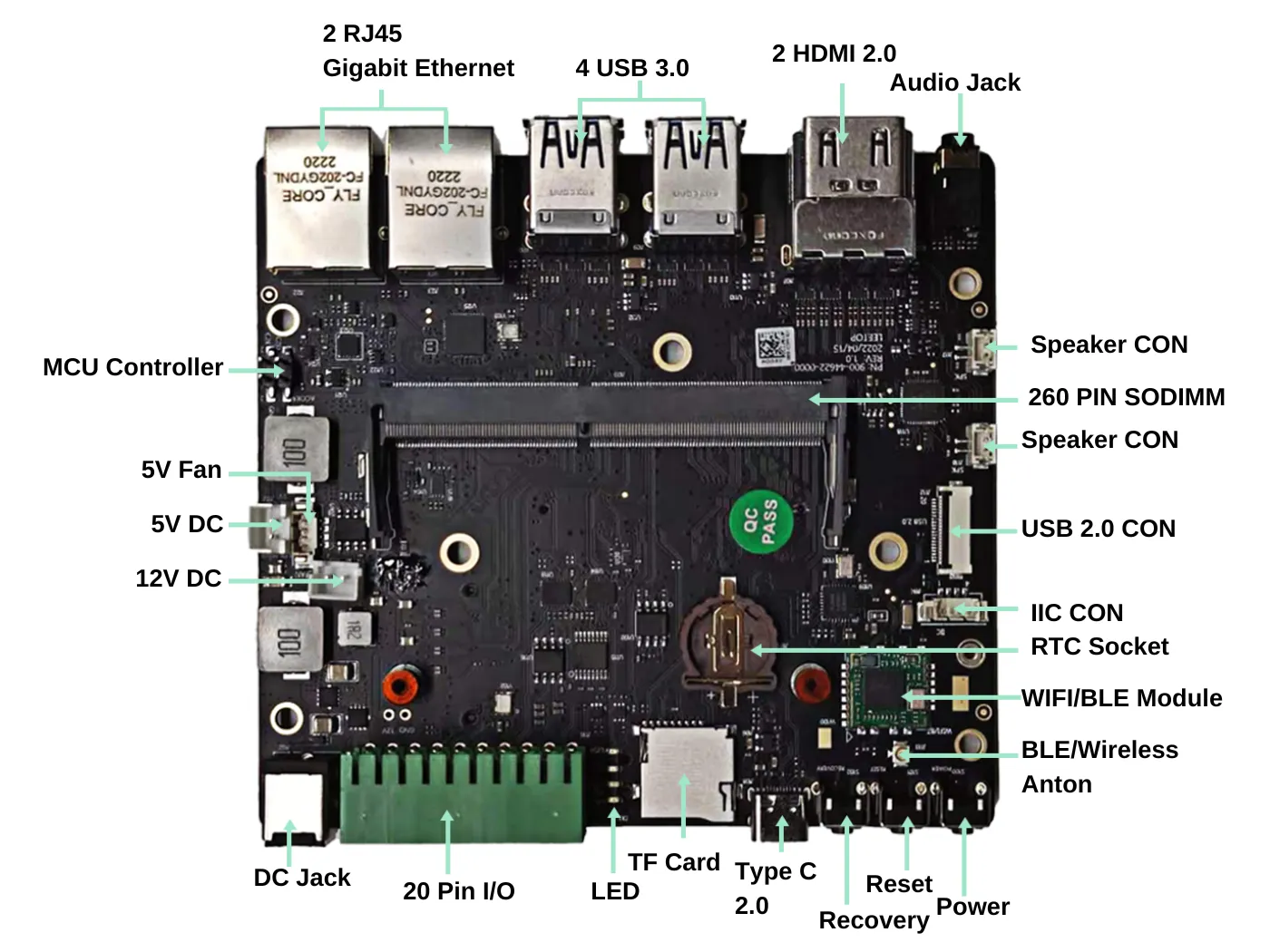

Various set of I/Os: 4x USB Type A, 1xUSB2.0 Type C, 1xSPI, 2x I2C, 40-Pin GPIO, 1x MicroSD card slot, M.2 Key M(SSD), M.2 Key E(WiFi), 1xFan(5V PWM), 2xLED State.

Cetifications: CE, FCC, RoHS

Description

With various I/O functions, A205-E is the ideal cost-effective choice for designing AIoT embedded system with NVIDIA Jetson module in industrial automation, robotics, and intelligent video analytics applications across the industry of the smart city, manufacturing, and healthcare.

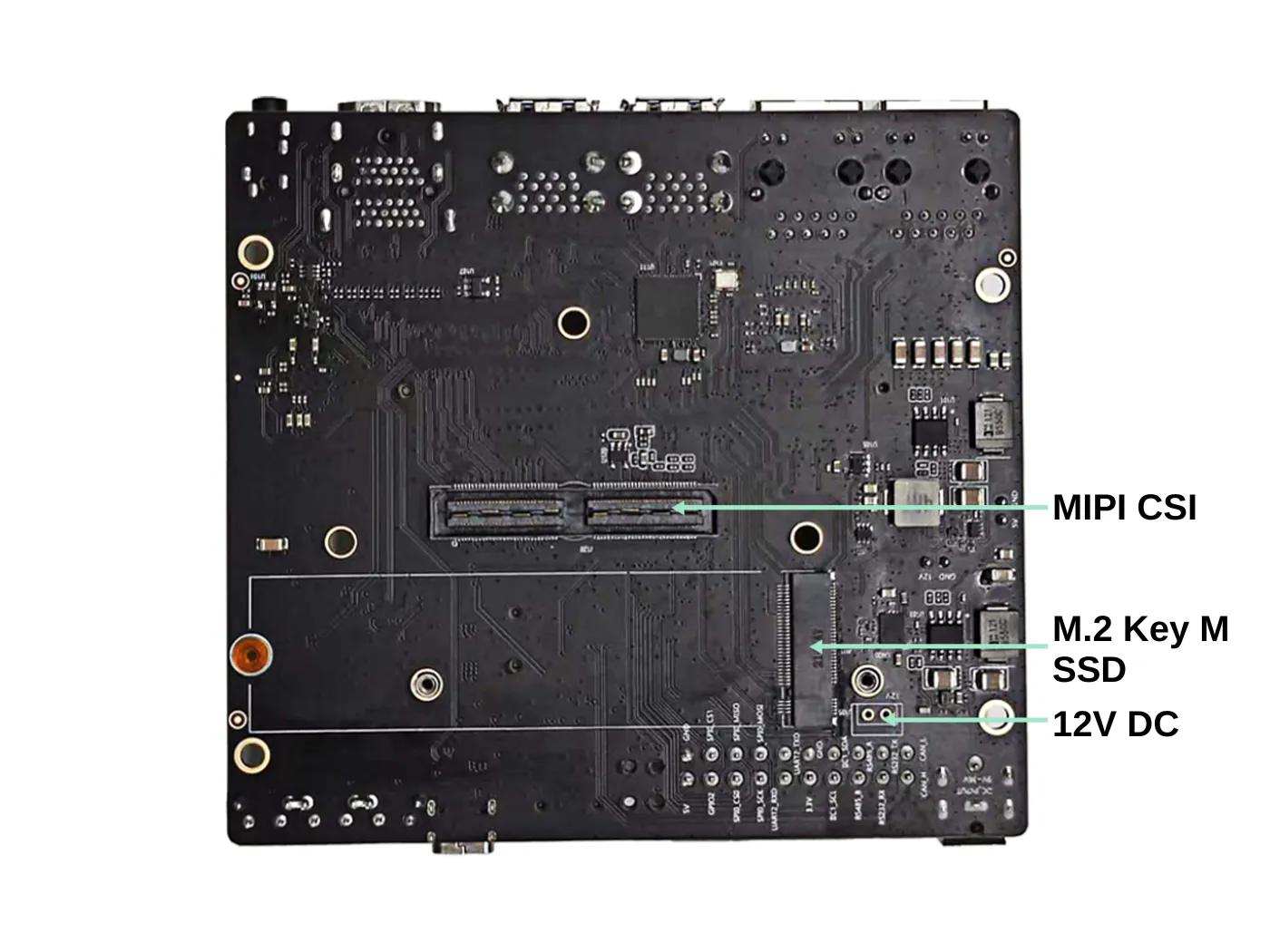

• High-speed interfaces such as dual Gigabit Ethernet and four USB 3 enable connecting high-speed devices, and cameras. There is also one MIPI CSI camera interface to connect Raspberry Pi cameras.
• With M.2 Key M and an onboard microSD card slot, you can extend sufficient storage for local processing.
• Additional isolated I/Os let the devices send a signal to the camera or PLC device to enable M2M communications.

Seeed is a reseller of NVIDIA embedded systems and a preferred partner of the NVIDIA Jetson ecosystem for edge AI. Explore more carrier boards, full system devices, customization services, use cases, and developer tools at !

Applications Reference

begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development. JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.

Attach with Jetson/Nano Xavier NX module, the carrier board will become a powerful embedded system for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more. We have the following use case and application example to help you take reference. You can also download our

• Industry 4.0:

  • , , and custom PPE detection

• Retail:

  • sentiment analysis(: learn your customer with AI by Zenus smart camera),

• Robotics:

• Agriculture: weeding machines, Tractors, Livestock detection

• Healthcare: medical imaging analysis

Specifications
