Product Details
+
FEATURES
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Easy assembly
Unit ships in three boxes for customer to install the Stack Rack on the bottom refrigerator/freezer and place and secure the other unit on top
Unit ships in three boxes for customer to install the Stack Rack on the bottom refrigerator/freezer and place and secure the other unit on top
Antimicrobial silver ion-coated handle
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
/-1�C Variation (refrigerator)
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable temperature
Intuitive controls let you adjust the interior temperature between 2 to 8�C (refrigerator) and -20� to -15�C (freezer)
Intuitive controls let you adjust the interior temperature between 2 to 8�C (refrigerator) and -20� to -15�C (freezer)
Temperature alarms
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Visual and audible alarms alert if the interior temperature rises or falls out of set range

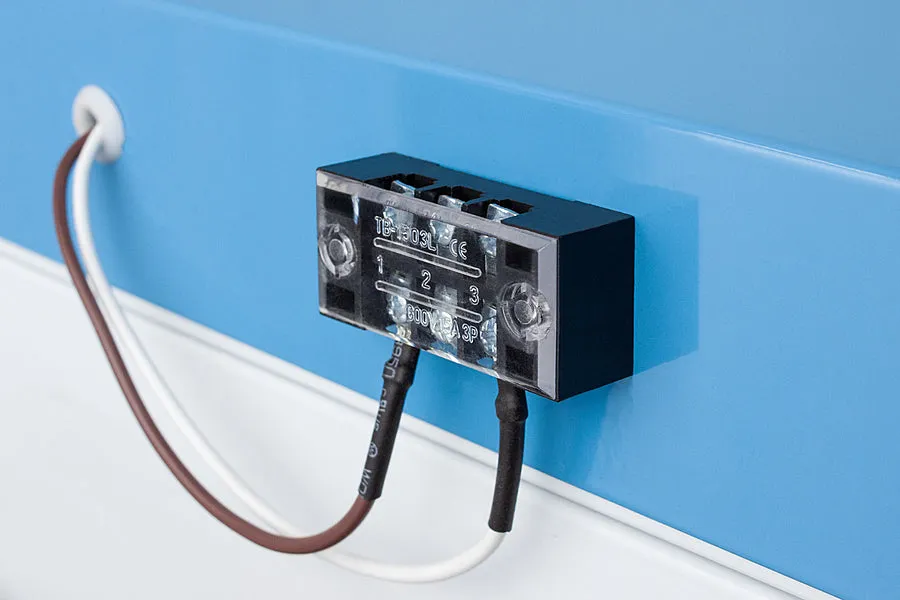

Remote alarm contacts (refrigerator)
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost (refrigerator)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Manual defrost (freezer)
Static cooling system for reduced temperature fluctuations
Static cooling system for reduced temperature fluctuations

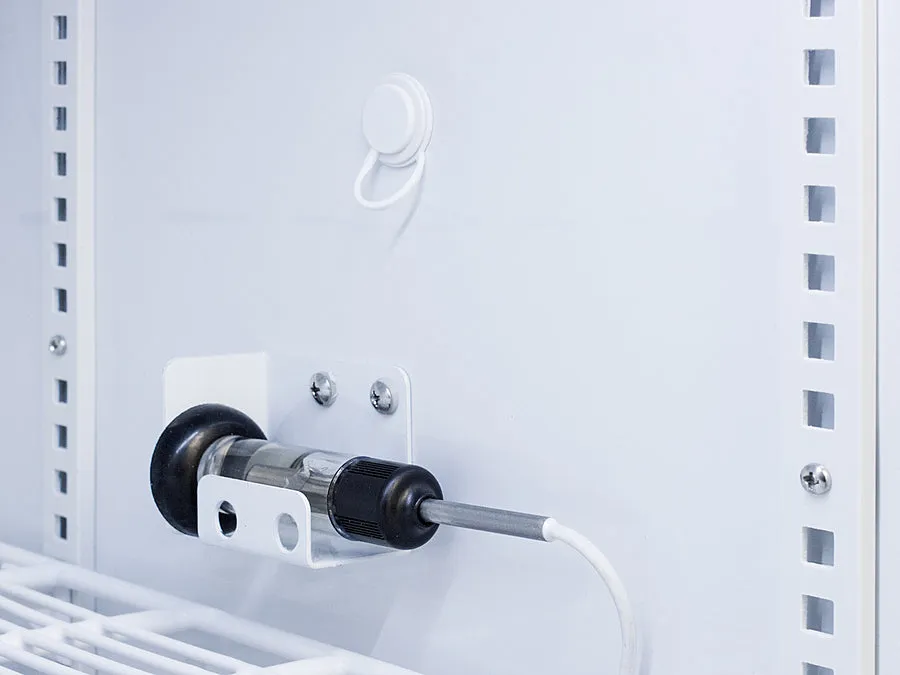

Access ports
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Open door alarm (refrigerator)
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm (refrigerator)
Battery-powered alarm sounds if the power connection is interrupted
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm (refrigerator)
Audible and visual alarm warns if the sensor is disrupted
Audible and visual alarm warns if the sensor is disrupted
Password protection (refrigerator)
Control panel requires password entry to adjust the parameters beyond the set point
Control panel requires password entry to adjust the parameters beyond the set point

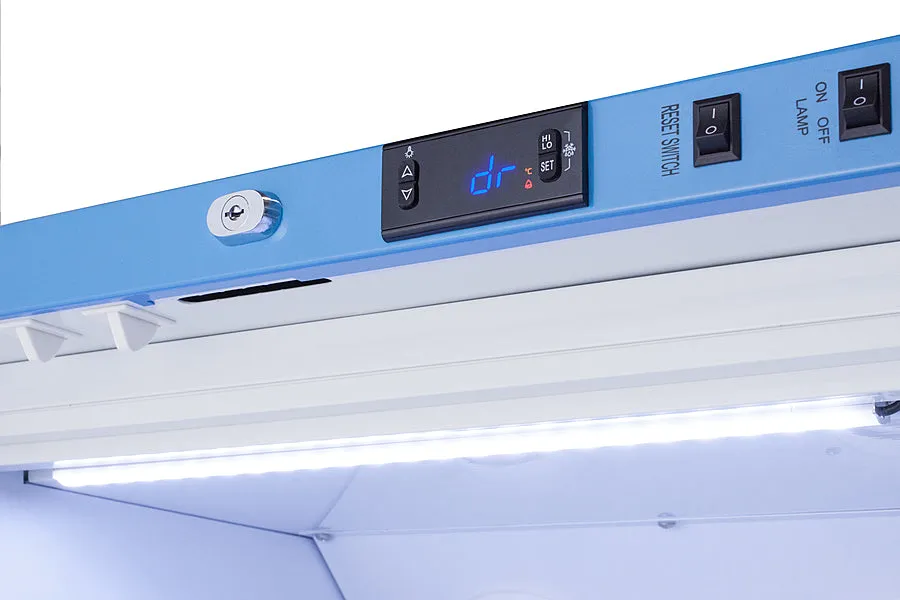

Microprocessor control panels
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display (refrigerator)
Control panel provides a readout of the low and high temperatures in 15 minute increments
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed locks
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

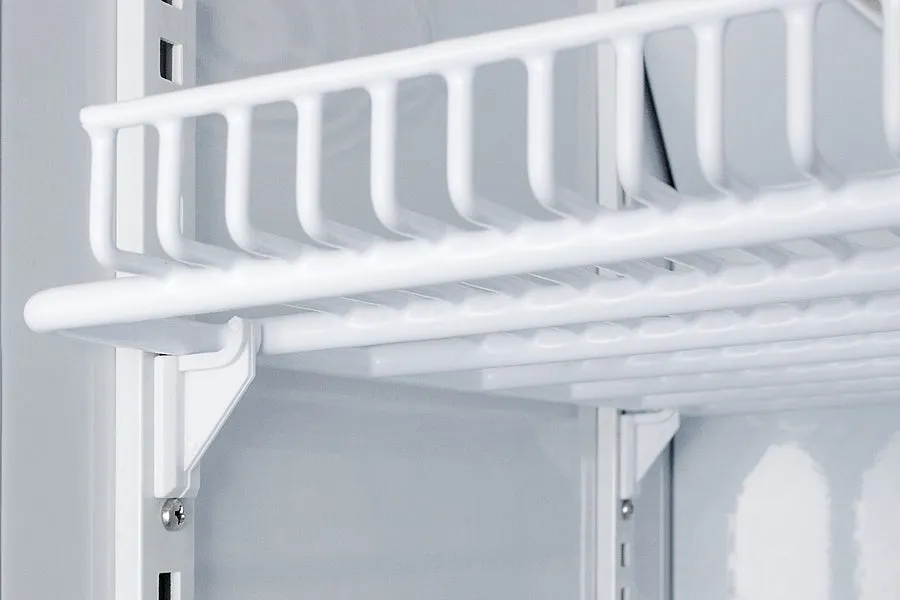

Adjustable plastic-coated wire shelves for improved circulation
Designed to accommodate a variety of sizes for flexible storage
Designed to accommodate a variety of sizes for flexible storage
Interior light (refrigerator)
Energy efficient LED lighting with internal on/off switch
Energy efficient LED lighting with internal on/off switch
Self-closing door (refrigerator)
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
2 years parts and labor/5 years compressor
Eco-Friendly (refrigerator)
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Versatile design (refrigerator)
Compatible with Pyxis�, Omnicell�, and AcuDose RX�
Compatible with Pyxis�, Omnicell�, and AcuDose RX�
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

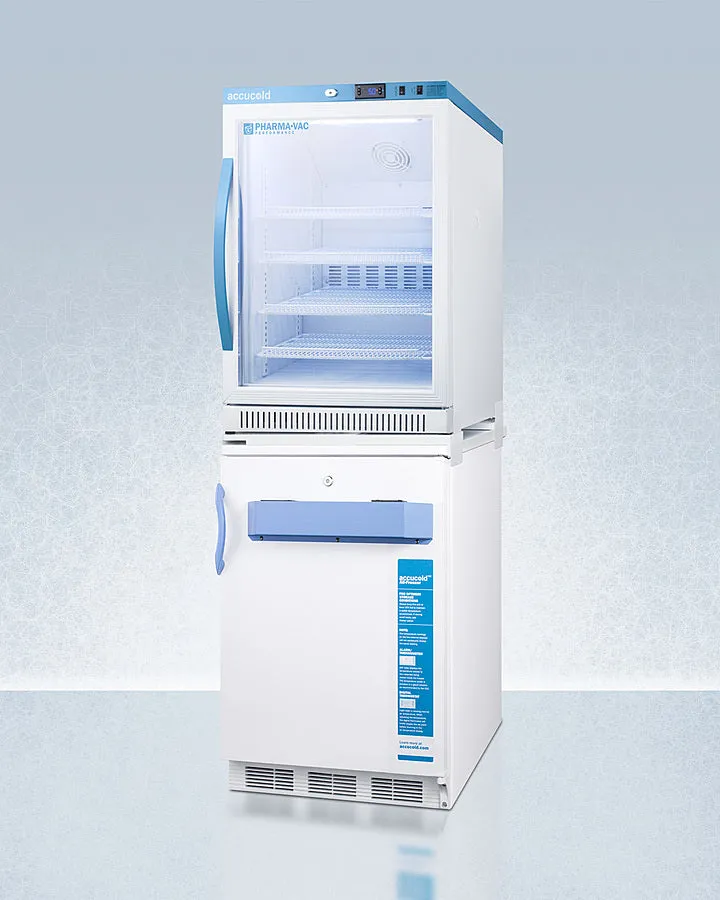

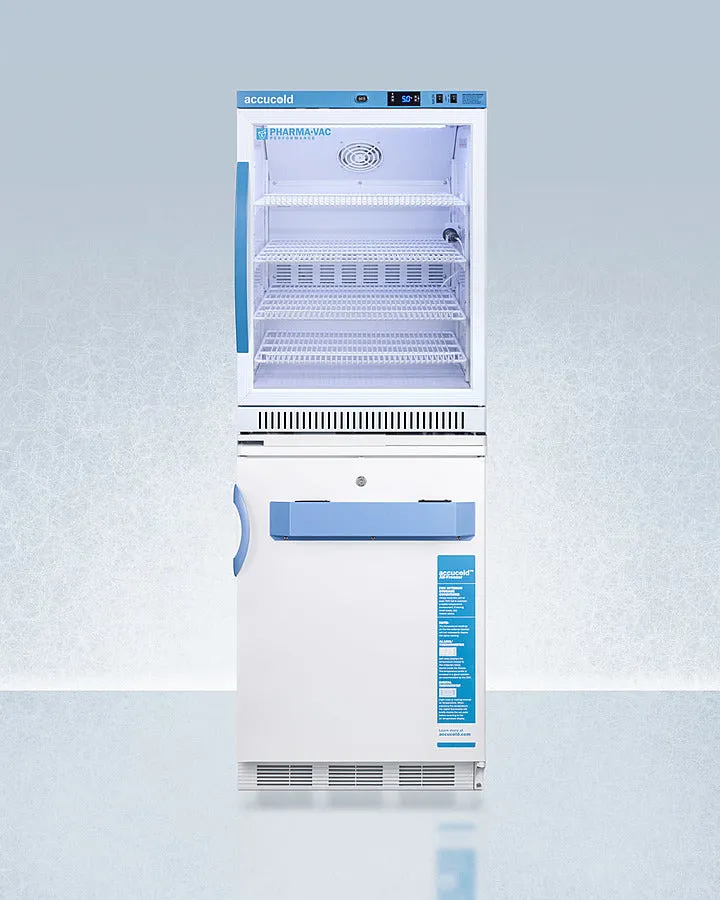

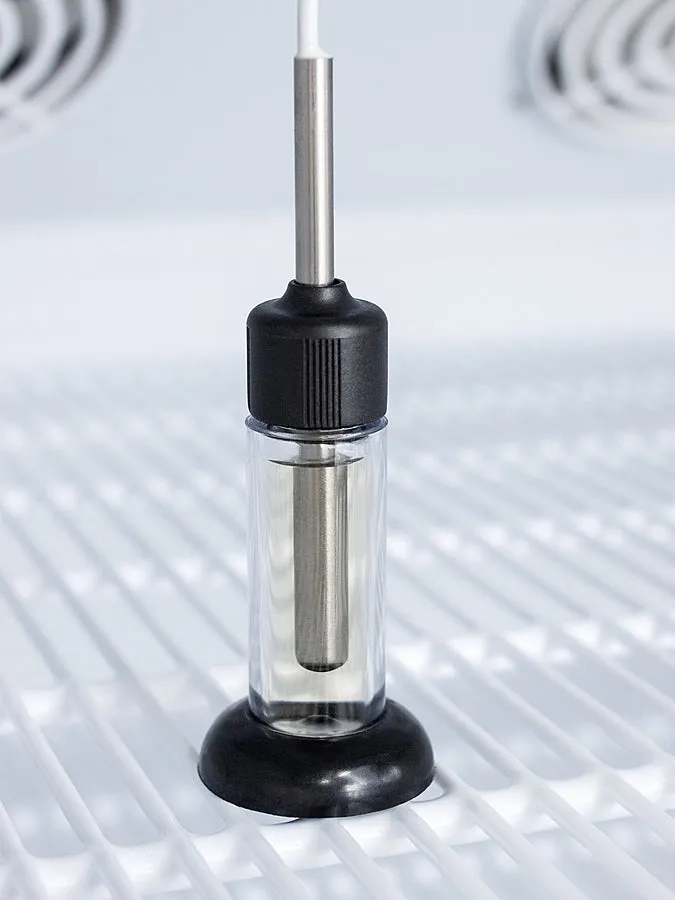

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines, with a powder-coated silver ion handle that helps prevent germ spread.Sized just under 24" wide, the ARG6PV-VT65MLSTACKMED2 combines the 6 cu.ft. ARG6PV auto defrost all-refrigerator with VT65MLBIMED2 all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. Refrigerator ARG6PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from 2 to 8�C. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience.Inside, the ARG6PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the VT65MLBIMED2, a -25�C all-freezer that utilizes manual defrost operation. The freezer includes three slide-out plastic storage drawers to better protect the contents from warmer ambient temperature when the door is opened. The digital control panel includes a NIST calibrated thermometer that provides a continuous display of the current and high/low temperature. This unit is also equipped with a temperature alarm and access port to accept additional monitoring equipment. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. The refrigerator has a self-closing door for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 68.0" (173 cm) |
Width | 23.63" (60 cm) |
Depth | 24.38" (62 cm) |
Depth with Handle | 26.13" (66 cm) |
Capacity | 9.2 cu.ft. (261 L) |
Door | Glass |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Voltage/Frequency | 115 V AC/60 Hz |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 24.5" (62 cm) |
Refrigerator - Interior Width | 20.0" (51 cm) |
Refrigerator - Interior Depth | 17.0" (43 cm) |
Refrigerator - Capacity | 6.0 cu.ft |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 4 |
Refrigerator - Temperature Range | 2 to 8�C |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 1.66 oz. |
Freezer - Interior Height | 24.25" (62 cm) |
Freezer - Interior Width | 17.63" (45 cm) |
Freezer - Interior Depth | 17.0" (43 cm) |
Freezer - Capacity | 3.2 cu.ft |
Thermostat Type | Digital |
Fan Type | Interior |
Freezer - Temperature Range | -12� to -25�C |
Freezer - Refrigerant Type | R134a |
Freezer - Refrigerant Amount | 2.76 oz. |
AVAILABLE UPGRADES
Handle | |||
---|---|---|---|
| |||
Interior | |||
| |||
Exterior | |||
| |||
Lock | |||
|
DOWNLOADS
BROCHURE
USE & CARE
USE & CARE
USE & CARE
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or
