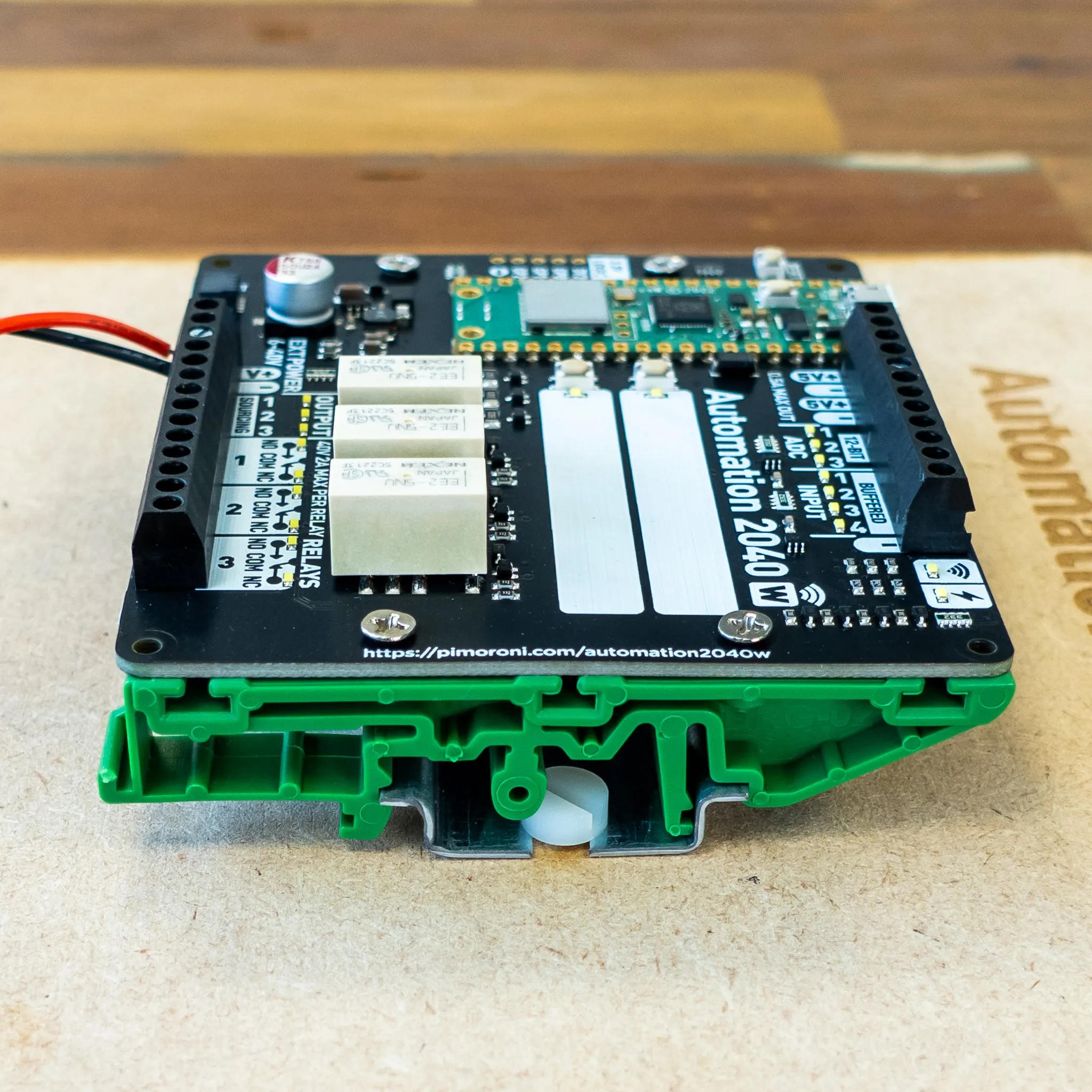

These mounts clip securely onto a DIN rail and can be used to mount PCBs or other devices inside a switch cabinet or electrical enclosure.

They can be used to mount on a DIN rail. If you're planning on using them with your own boards, the spacing between the mounting holes is 33mm. The holes are 2.75mm but work with M3 screws.

DIN rail and Automation 2040 W are not included!

Kit contains

• 2x mounting clips

• 4x M3 mounting screws

Specifications

• Material: PVC
• Colour: Green

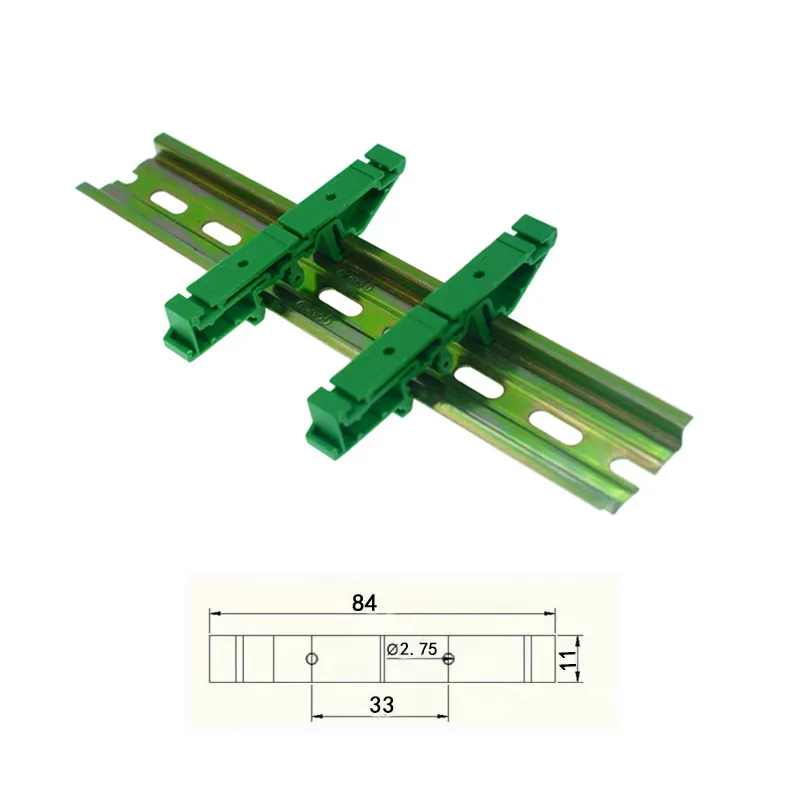

• Dimensions:
  • length: 84mm
  • width: 11mm
• Mounting holes: 2.75mm (33mm apart)
