Introducing the Draper Access V [16:10] Tab-Tensioned Ceiling-Recessed Electric Screen, the perfect solution for creating an immersive audiovisual experience in your home or professional space. With its impressive size of 109 inches and a viewing area of 57 1/2" x 92", the 140112U model delivers breathtaking visuals and exceptional clarity.

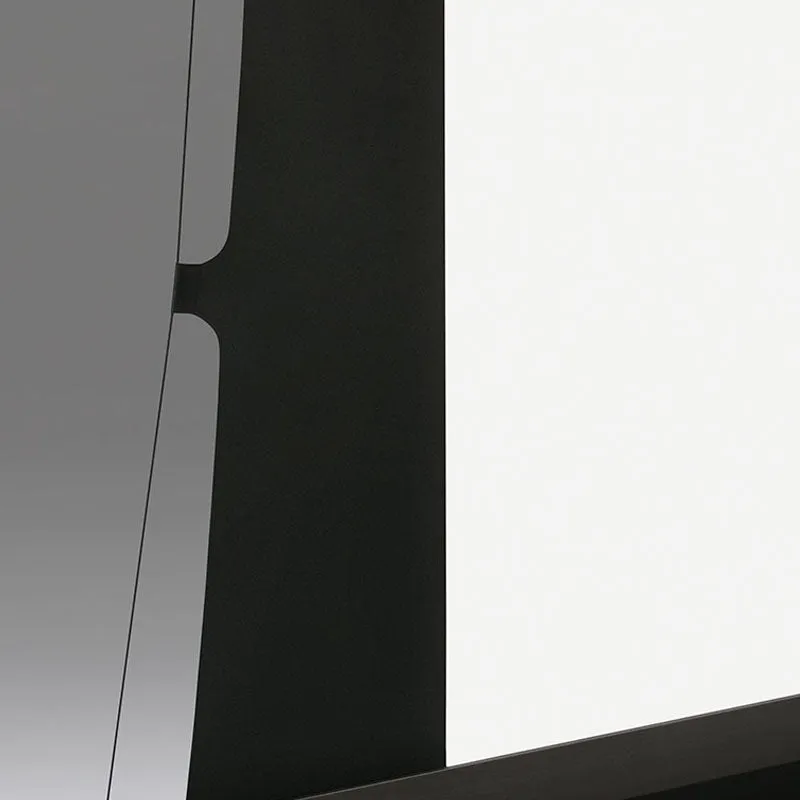

Designed for ceiling installation, the Access V screen seamlessly integrates into any environment, providing a clean and unobtrusive appearance when not in use. Its tab-tensioned mechanism ensures a perfectly flat viewing surface, eliminating any wrinkles or creases that could hinder image quality.

The electric motorized operation allows for effortless screen deployment and retraction at the touch of a button, providing convenience and flexibility for your viewing needs. The quiet motor ensures minimal noise disturbance during operation, maintaining a distraction-free atmosphere.

With its 16:10 aspect ratio, the Draper Access V screen is ideal for displaying presentations, videos, movies, and other multimedia content. The wider aspect ratio offers more screen real estate, allowing for a broader field of view and enhanced visual experience.

The high-quality screen material is carefully selected to provide accurate color reproduction and wide viewing angles. It offers excellent contrast, sharpness, and brightness, ensuring vibrant and detailed visuals from any seating position in the room. The screen's matte white finish minimizes glare and reflection, further enhancing the overall image quality.

Whether you're setting up a home theater, conference room, or educational space, the Draper Access V [16:10] Tab-Tensioned Ceiling-Recessed Electric Screen 140112U offers superior performance, durability, and versatility. Elevate your viewing experience and captivate your audience with this exceptional projection screen.

Product Specs

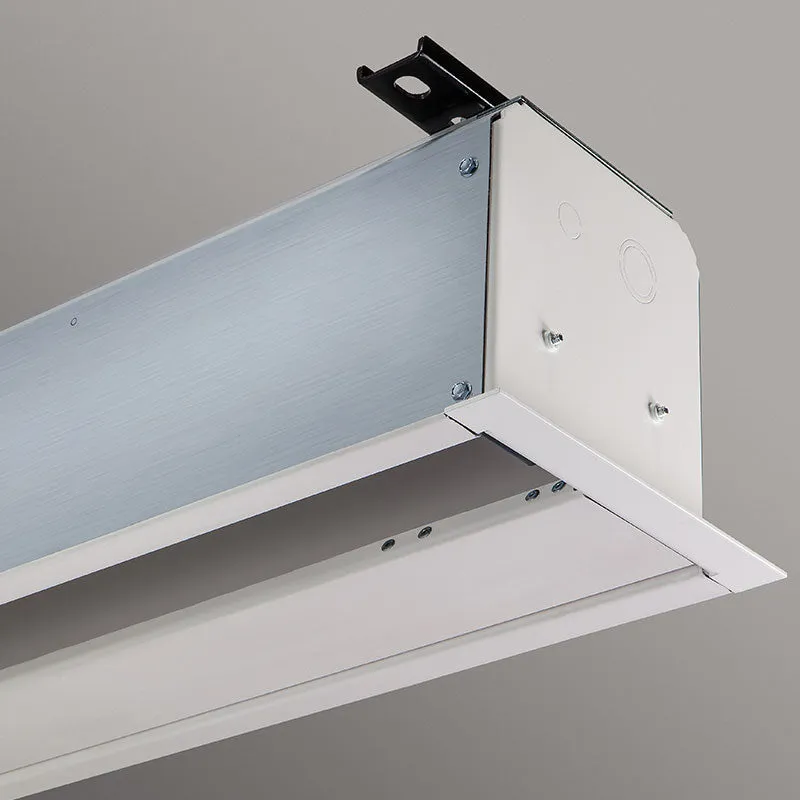

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
