Introducing the Draper Access V [16:10] Tab-Tensioned ceiling-recessed Electric Screen 165" (87 1/2" x 140") 140040U – the perfect solution for creating an immersive visual experience in large-scale settings. This state-of-the-art electric screen combines cutting-edge technology, superior construction, and a sleek design to deliver exceptional image quality and ease of use.

With its massive 165" diagonal size and a 16:10 aspect ratio, this screen offers a generous viewing area that enhances presentations, lectures, conferences, and entertainment events. The dimensions of 87 1/2" x 140" ensure a wide canvas to display your content with utmost clarity and detail, making it suitable for both professional and recreational applications.

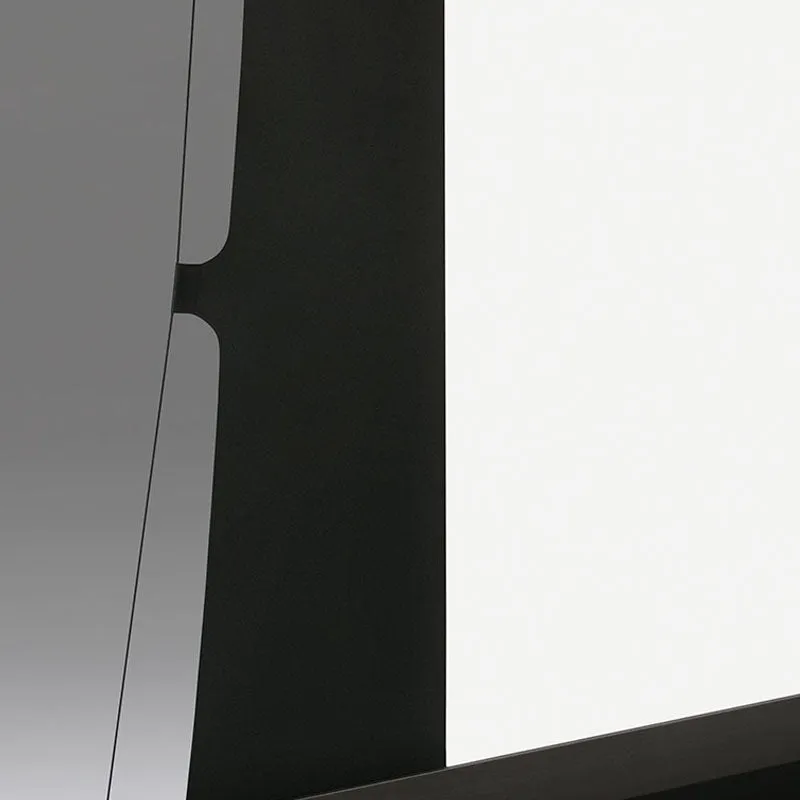

One of the key features of the Draper Access V is its tab-tensioning system, which ensures a flat, wrinkle-free projection surface at all times. This innovative mechanism guarantees uniform tension across the entire screen, eliminating any distortions or waves that can compromise image quality. With a perfectly smooth surface, your visuals will be showcased with stunning accuracy, vibrant colors, and sharpness, providing an immersive viewing experience for your audience.

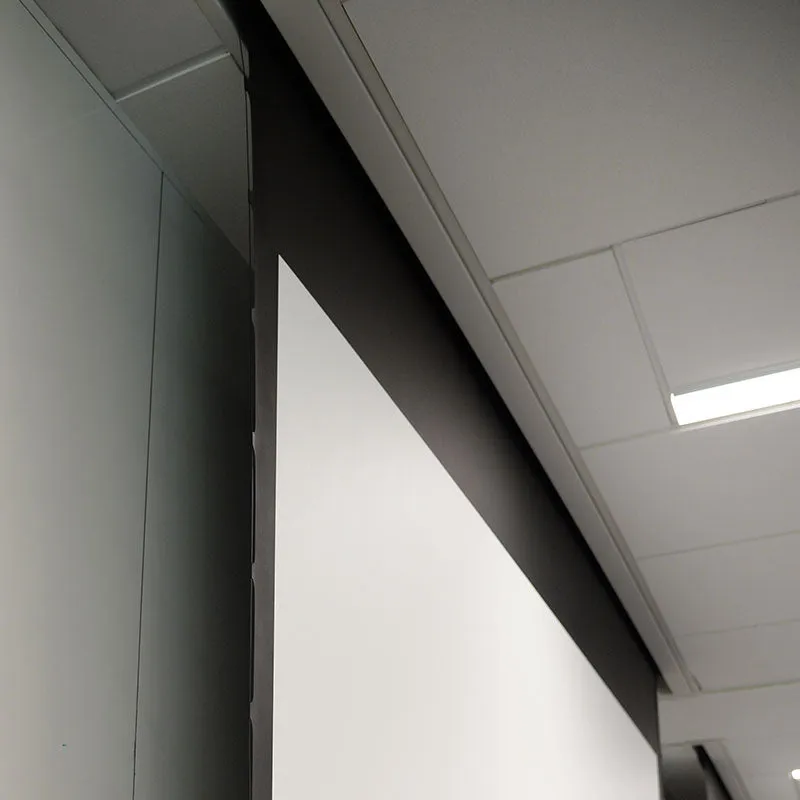

Designed for seamless integration, the Access V is ceiling-recessed, allowing it to blend effortlessly with your existing decor. When not in use, the screen retracts neatly into the ceiling, creating a clean and unobtrusive appearance. The motorized operation enables quick and quiet deployment with the touch of a button, offering convenience and ease of use during presentations or events.

The 140040U model is equipped with advanced motor technology, ensuring smooth and precise screen movements. The low-noise operation allows you to focus on your content without distractions, while the robust construction guarantees durability and longevity.

Additionally, the Draper Access V [16:10] Tab-Tensioned Electric Screen offers versatile control options, including wireless and remote control capabilities. This enables effortless management of the screen's deployment, retraction, and adjustment from a distance, providing flexibility and convenience for the user.

In summary, the Draper Access V [16:10] Tab-Tensioned ceiling-recessed Electric Screen 165" (87 1/2" x 140") 140040U is an exceptional projection solution that combines superior technology, reliable performance, and sleek aesthetics. Elevate your presentations, events, or entertainment experiences with this impressive screen, delivering immersive visuals and ensuring a professional and engaging atmosphere.

Product Specs

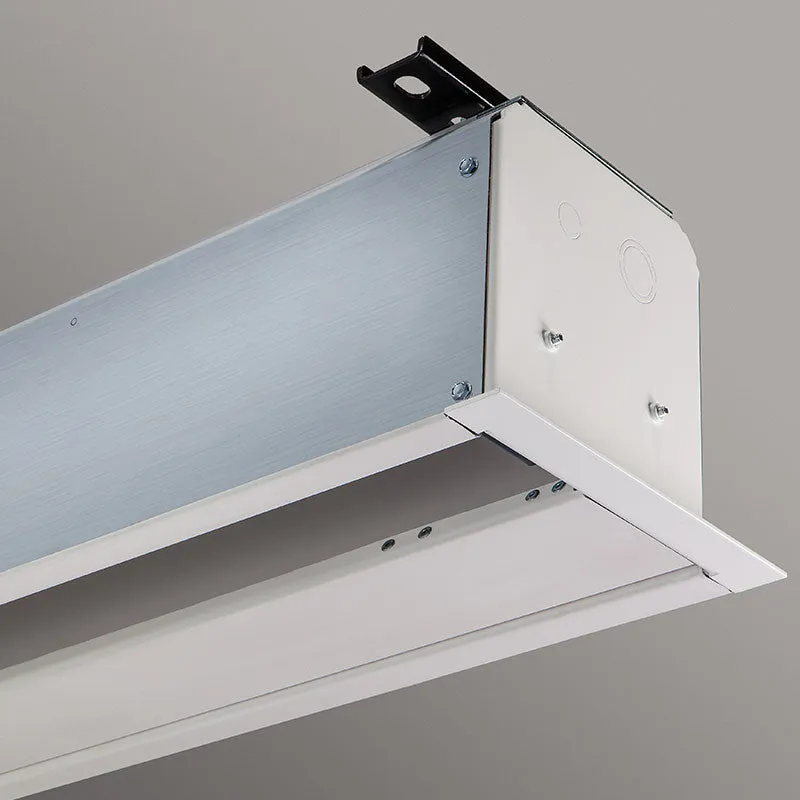

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
