Introducing the Draper Access V [NTSC 4:3] Tab-Tensioned ceiling-recessed Electric Screen 15' (108" x 144") 140020U, a state-of-the-art projection screen designed to deliver an exceptional viewing experience for professional presentations, home theaters, and educational environments.

With its impressive size of 15 feet, this screen provides a generous viewing area measuring 108 inches in height and 144 inches in width, perfectly suited for larger venues and installations that require a captivating visual display. The screen's NTSC 4:3 aspect ratio ensures compatibility with a wide range of content formats, making it ideal for business presentations, training sessions, and video screenings.

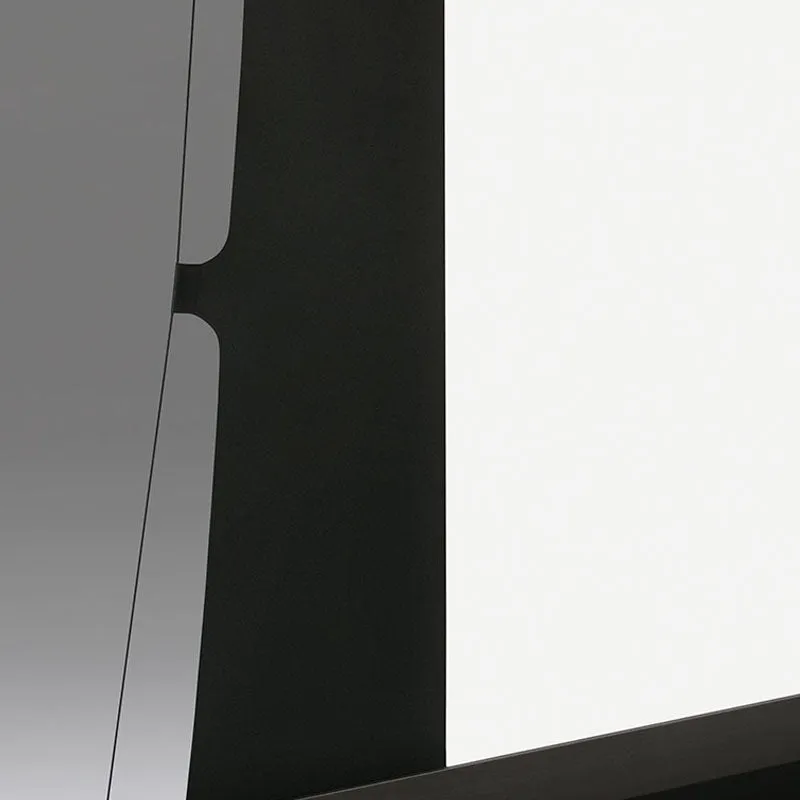

One of the standout features of the Draper Access V is its tab-tensioning system. This technology ensures that the screen surface remains perfectly flat, eliminating any wrinkles or waves that may distort the projected image. By maintaining optimal tension across the entire surface, the screen guarantees a smooth and uniform viewing experience, enhancing clarity and detail.

The ceiling-recessed design of the Access V allows for seamless integration into any space. When not in use, the screen retracts fully into the ceiling, remaining completely hidden from view. This discreet and space-saving feature makes the Access V an excellent choice for multi-purpose rooms or environments where aesthetics are paramount.

Operating the screen is effortless thanks to the electric motor system. With a simple press of a button, the screen smoothly lowers into position, ready for use. The motor is whisper-quiet, ensuring minimal disturbance during presentations or movie screenings. Additionally, the screen includes an adjustable limit switch, allowing you to set precise upper and lower screen positions.

The Draper Access V is constructed with quality materials to ensure durability and longevity. The screen surface is made from premium materials that provide excellent color reproduction, wide viewing angles, and uniform light diffusion. The sturdy aluminum housing protects the screen when retracted and offers reliable support during operation.

Whether you're hosting a corporate event, enjoying a movie night with family and friends, or delivering a compelling educational presentation, the Draper Access V [NTSC 4:3] Tab-Tensioned ceiling-recessed Electric Screen 15' (108" x 144") 140020U is a top-of-the-line choice that guarantees stunning visuals and exceptional performance. Elevate your viewing experience with this outstanding projection screen.

Product Specs

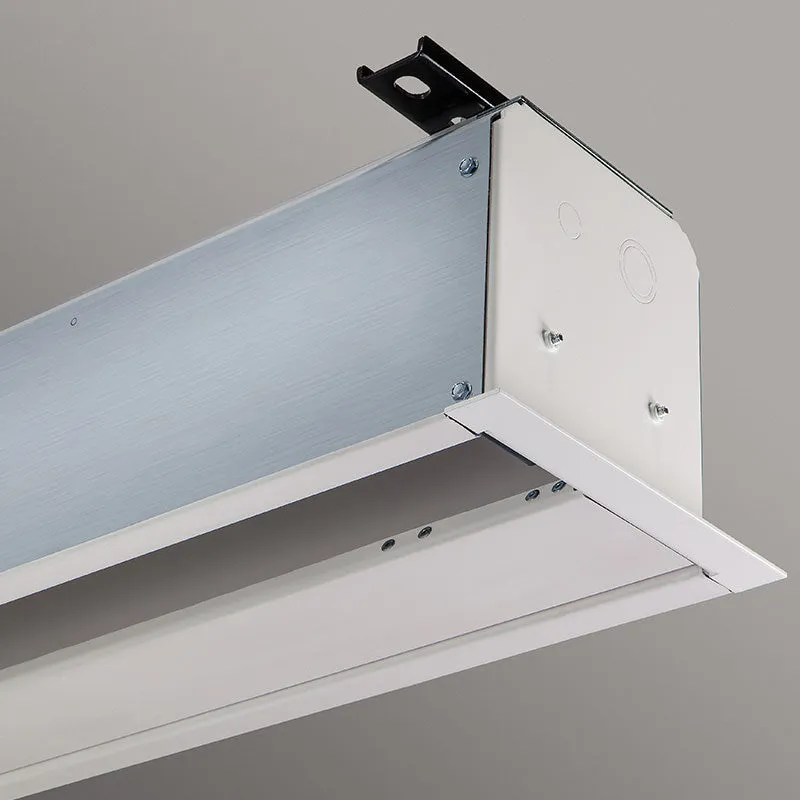

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.

Supporting Documents
