Introducing the Draper Access V [NTSC 4:3] Tab-Tensioned Ceiling-Recessed Quiet Motor Projection Screen in the 11' size (78" x 104"), model number 140105Q. This top-of-the-line projection screen is designed to provide you with a premium viewing experience in any professional or residential setting.

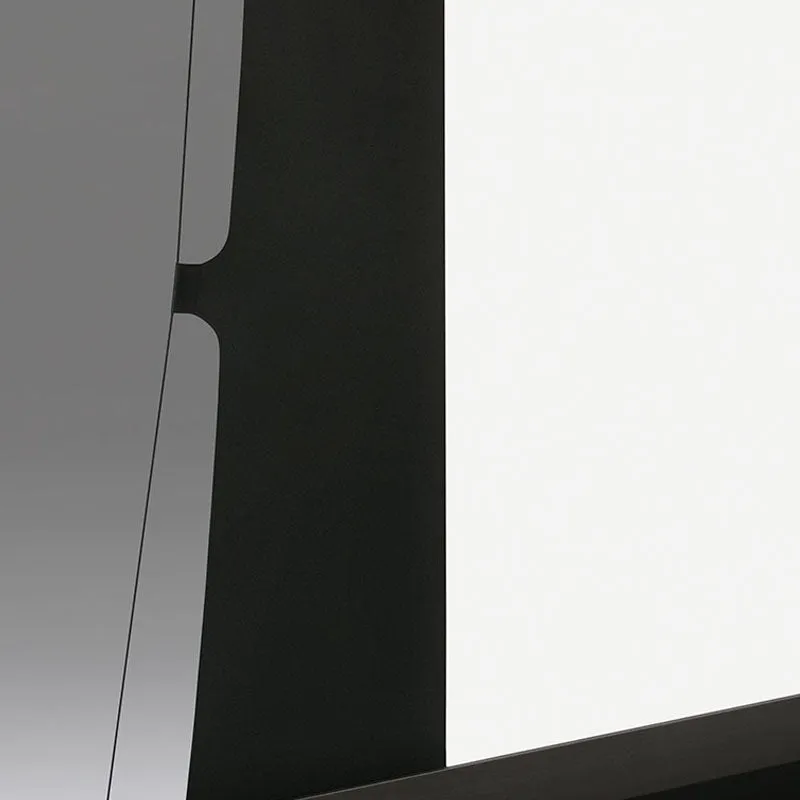

The Access V is a motorized projection screen that features a tab-tensioning system, ensuring a flat and wrinkle-free viewing surface for excellent image quality. The tab-tensioning mechanism prevents any visible distortions or waves on the screen, delivering a truly immersive visual presentation.

This specific model is designed to accommodate the NTSC 4:3 aspect ratio, making it ideal for traditional presentations, video conferencing, or home theater setups. With its generous size of 11' (78" x 104"), the screen offers a large viewing area that can captivate audiences in both small and large spaces.

The ceiling-recessed design of the Access V allows for seamless integration into any environment. When not in use, the screen discreetly retracts into the ceiling, saving valuable space and maintaining a clean aesthetic. This feature is particularly useful in multi-purpose rooms or locations where the screen needs to be hidden when not in operation.

One of the standout features of the Access V is its quiet motor. The motorized operation is virtually silent, ensuring minimal disruption during presentations or movie screenings. This makes it an excellent choice for environments where noise reduction is crucial, such as conference rooms, classrooms, or home theaters.

The Draper Access V [NTSC 4:3] Tab-Tensioned Ceiling-Recessed Quiet Motor Projection Screen is built to the highest standards of quality and durability. The screen material is carefully selected to provide optimal color reproduction, contrast, and viewing angles. The sturdy construction and reliable motor mechanism ensure long-lasting performance and smooth operation for years to come.

Upgrade your viewing experience with the Draper Access V [NTSC 4:3] Tab-Tensioned Ceiling-Recessed Quiet Motor Projection Screen. Whether you're delivering professional presentations or enjoying a movie night at home, this projection screen offers outstanding visual performance, seamless integration, and whisper-quiet operation, all in a sleek and user-friendly design.

Product Specs

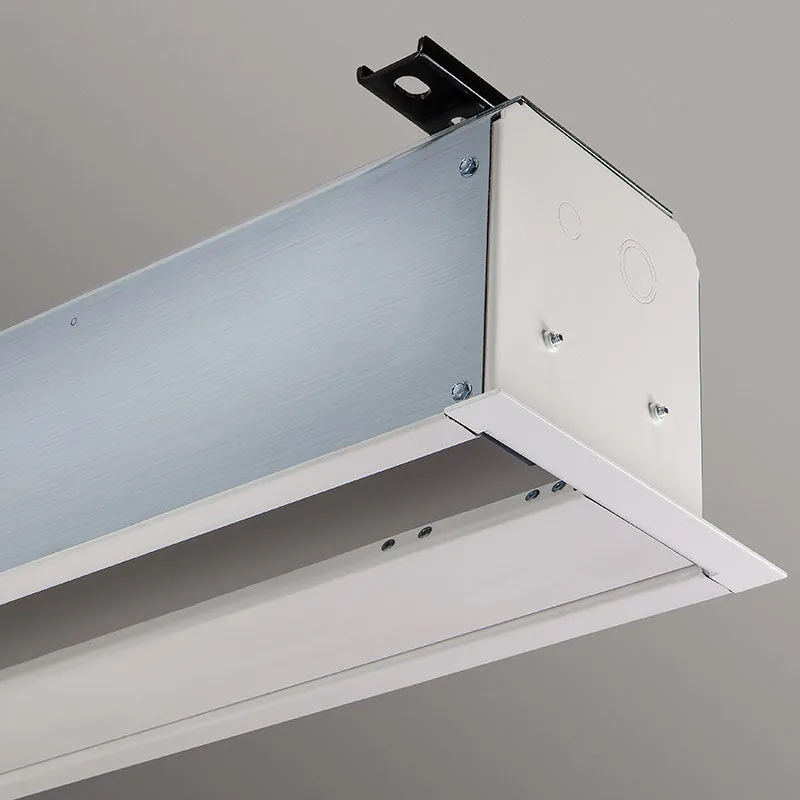

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
