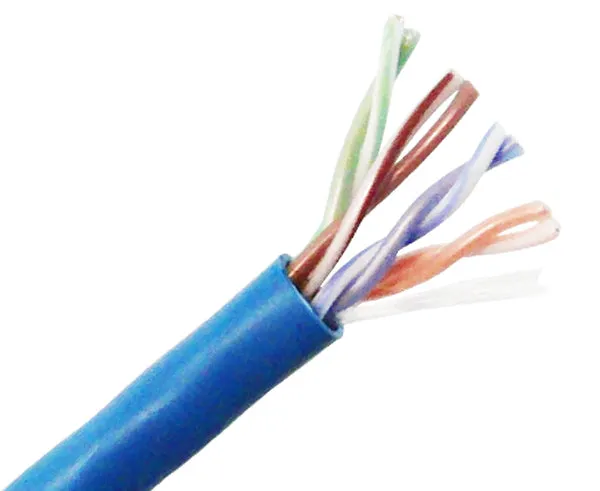

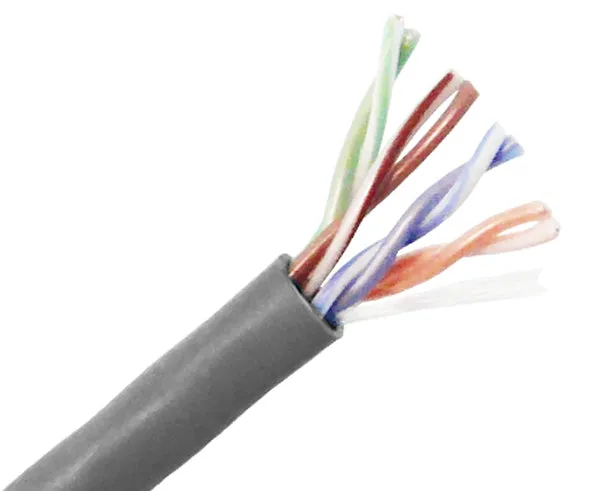

CAT5E Plenum Bulk Ethernet Cable, CMP UL Listed, Solid Copper UTP, 24 AWG - 1000FT
Our CAT5E CMP Rated Plenum Cable is ideal for indoor voice, data, video, and security networking needs. Whether you're wiring a home, office, or entire campus, we have the right network solution for you.
This UL Listed CAT5E CMP Rated Plenum Cable is perfect for reliable indoor installations. It features 8 solid bare copper conductors (4-Pairs) with FEP insulation and a CMP rated PVC RoHS Compliant jacket. Designed for indoor LAN applications, it's the top choice for installations in plenum areas.
Committed to supplying high-quality bulk Ethernet cables, our cables meet and exceed CAT5E ANSI/TIA-568.2-D standards. Our CAT5E plenum is manufactured to current CAT5E guidelines and is verified by external standards organizations to be UL Listed and RoHS Compliant.
Technical Diagram
Cat 5E Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | |||||
Cat 6 Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
Features
Features
- High-Performance Data Communications Cable
- Suitable for 350MHz High Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD CDDI
- 4-pair, Easily Identified Color-Striped Pairs
- CAT5E Unshielded Twisted Pair (UTP) Cable
- 24AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Sequential Foot Markers on Jacket
- Exceeds ANSI/TIA-568.2-D, CSA and ISO/IEC 11801 Specifications
- Designed for Indoor Installations
- Flame Retardant Jacket, (FR-PVC)
- UL Listed
- ETL Verified
- Supplied In 1000FT Pull Boxes
- Category 5E CMP Rated Cable
- Designed for Indoor Plenum Rated Installations
- RoHS Compliant

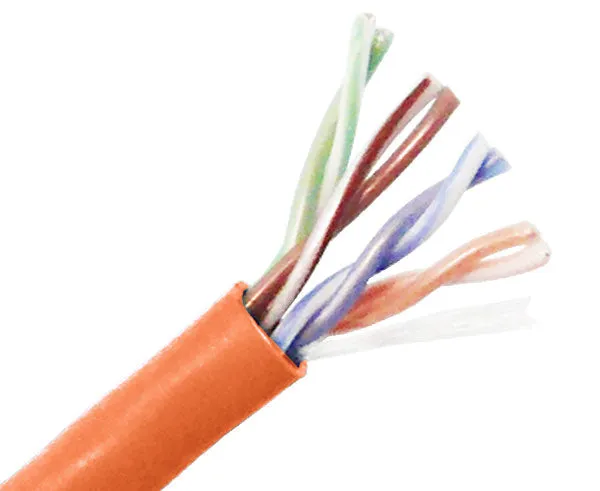

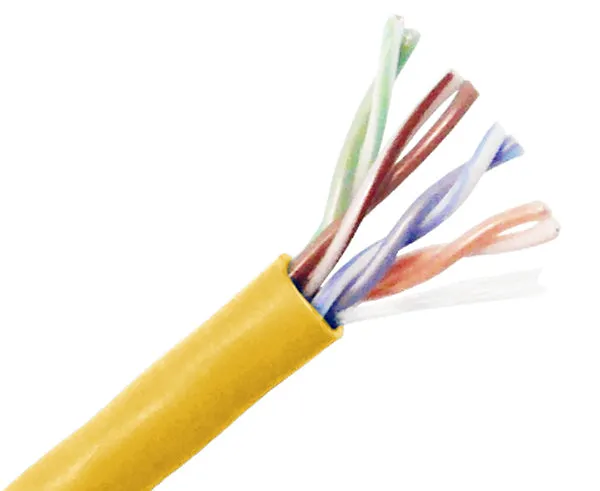

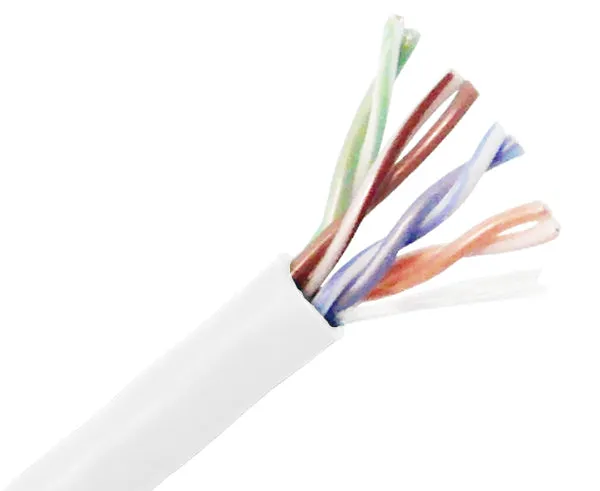

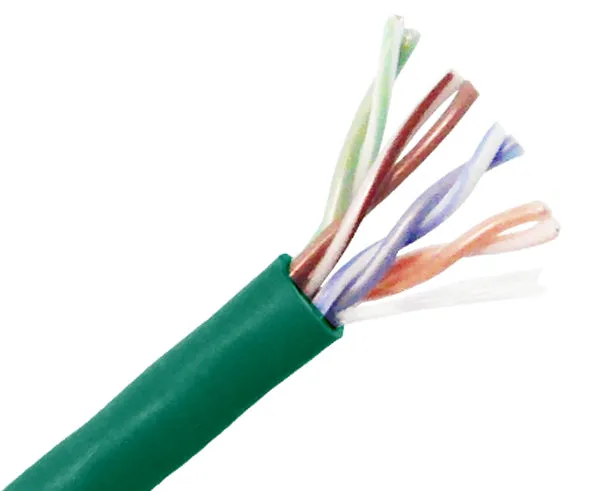

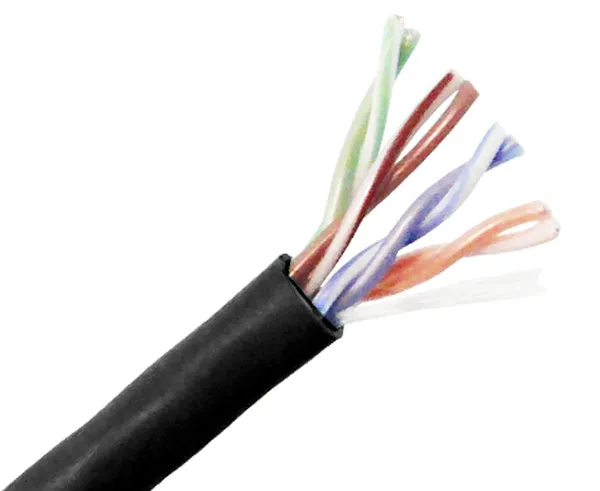

- Available in Assorted Colors
Specifications
Specifications
Additional Information
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
To learn more about our please visit our product overview page.
Our Indoor CAT5E CMP Rated Plenum Ethernet Cable is compatible with our:
What’s In The Box
What’s In The Box

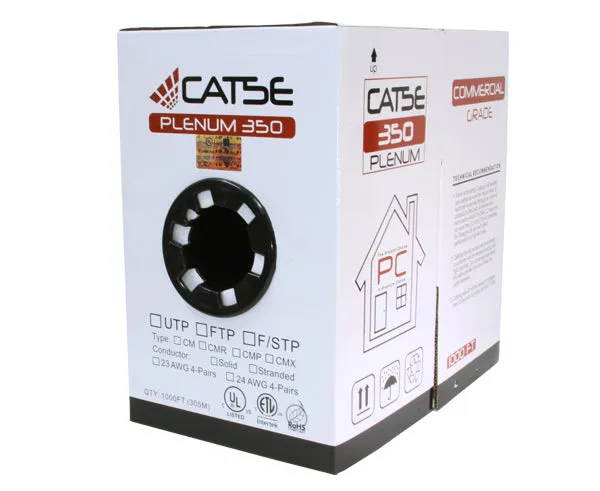

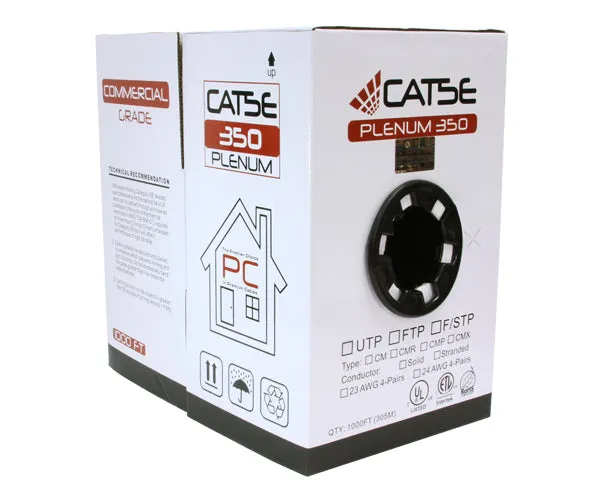

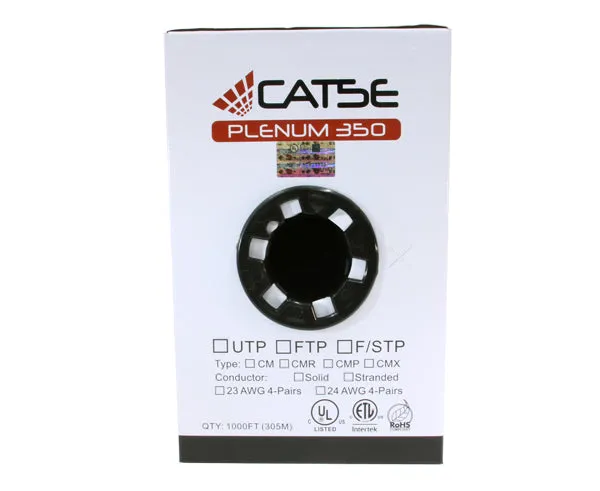

- Qty 1 - 1000ft Pull box of CAT5E UTP Plenum Rated Ethernet Cable
